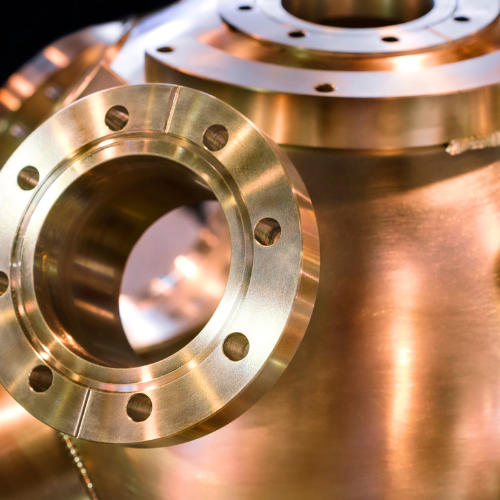

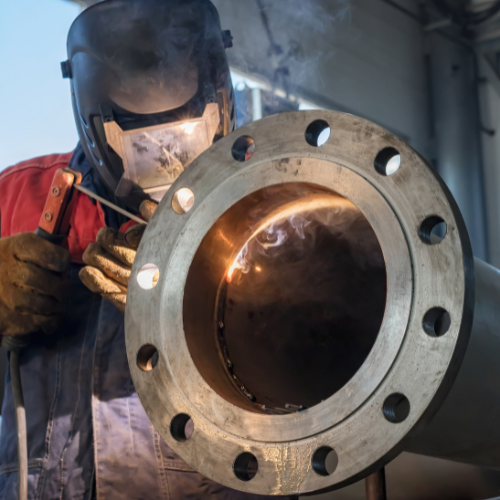

Forged Flanges
Forged Flanges are manufactured by hot forging, heat-treating, and precision machining high-grade steel billets. Known for exceptional strength, superior grain structure, and high pressure-temperature performance, forged flanges are ideal for pipelines, valves, pumps, and equipment connections. These flanges provide excellent reliability, accurate dimensions, and a smooth machined finish, making them suitable for industrial and commercial applications.
About Our Forged Flanges
We supply high-quality Forged Steel Flanges sourced from reputed manufacturers. Our flanges are widely used in oil & gas, petrochemical, construction, and industrial piping systems, offering strength, durability, and leak-proof performance.
Key Features
- •High strength through forging process
- •Excellent pressure and temperature resistance
- •Superior grain flow and impact toughness
- •Smooth CNC machined finish
- •Accurate bolt hole alignment
- •Available in CS, MS, SS, Alloy & Duplex grades
Applications
- •Oil & gas pipelines
- •Chemical & petrochemical plants
- •Water treatment and HVAC systems
- •Firefighting lines
- •Industrial fluid & gas lines
- •High-pressure and high-temperature piping
Flange Size & Pressure Class Range
| diameter | thickness | use |
|---|---|---|
| Slip-On Flange (½” – 24”) | Class 150 – 300 | Low to medium pressure water and utility lines |
| Weld Neck Flange (1” – 48”) | Class 300 – 900 | High-temperature, high-pressure pipelines |
| Blind Flange (½” – 48”) | Class 150 – 2500 | Pipeline isolation, testing & maintenance |
Manufacturing Process
Our Forged Flanges are produced from premium steel billets that undergo controlled heating and high-pressure forging to achieve superior mechanical properties. After forging, the flanges are heat-treated through normalizing or quenching and tempering to enhance strength and hardness. Precision CNC machining ensures accurate dimensions, perfect bolt hole alignment, and high-quality surface finishes such as RF, FF, or RTJ. Each flange is thoroughly inspected using ultrasonic testing, hardness testing, tensile testing, and visual checks to ensure compliance with ASME and ASTM standards. As trusted traders, we provide only certified, high-performance forged flanges suitable for oil & gas, chemical, power, and industrial applications.
Forged Flanges vs Cast Flanges
| Aspect | Forged Flanges | Cast Flanges |
|---|---|---|
| Strength | Very high due to grain flow | Moderate |
| Pressure Resistance | Excellent | Lower |
| Manufacturing | Hot forging + machining | Sand casting |
| Leakage Risk | Very low | Higher |
| Best Use | High-pressure pipelines | Low-pressure systems |
Quality Tests Performed
- Chemical Composition Testing
- Tensile & Yield Strength Test
- Ultrasonic / Radiography Testing
- Hardness Testing
- Dimensional Accuracy Inspection
Frequently Asked Questions
Which materials are used for forged flanges?▼
Forged flanges are available in Carbon Steel (A105), Stainless Steel (304/316), Alloy Steel, Mild Steel, and Duplex Steel.
What standards do your forged flanges comply with?▼
Our flanges follow ASME B16.5, ANSI B16.47, ASTM A105/A182, DIN, EN, and BS 4504 standards.
What types of forged flanges do you supply?▼
We supply Weld Neck, Slip-On, Blind, Threaded, Socket Weld, and Lap Joint flanges in Class 150 to 2500.
Where are forged flanges used?▼
Forged flanges are used in oil & gas pipelines, petrochemical plants, power plants, firefighting systems, and high-pressure industrial piping.
Related Products
View All
Plate Flanges
We supply high-quality Plate Flanges made from premium IS 2062 and ASTM-grade steel plates. As trusted traders and distributors, we provide durable, dimensionally accurate, and cost-effective flanges suitable for water pipelines, fire-fighting systems, fabrication, and industrial applications.

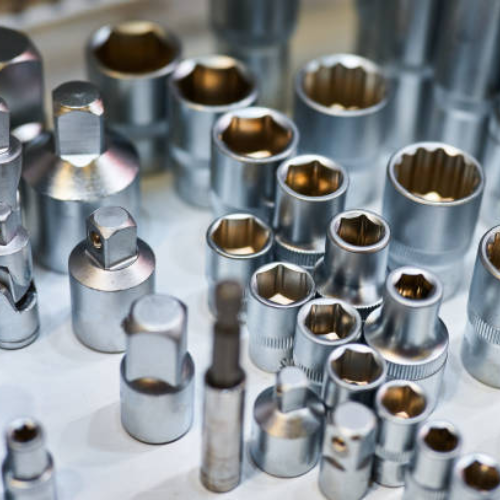

Alloy Steel Fittings
As trusted traders and suppliers, we provide high-quality Alloy Steel Fittings sourced from reputed and certified manufacturers. Our chrome moly pipe fittings are widely used in high-temperature, high-pressure, and critical industrial applications, offering superior strength, heat resistance, and long-term reliability.

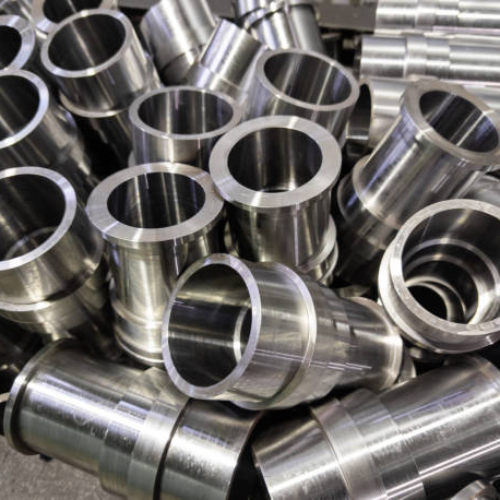

Stainless Steel Fittings
We supply premium-quality Stainless Steel Fittings in SS 304, SS 316, and SS 202 grades, manufactured as per ASTM, ASME, ANSI, and DIN standards. As trusted stockists and traders, we offer precision-engineered elbows, tees, reducers, unions, couplings, nipples, caps, and flanges with accurate dimensions, smooth finish, and superior corrosion resistance suitable for plumbing, industrial, and high-pressure applications.

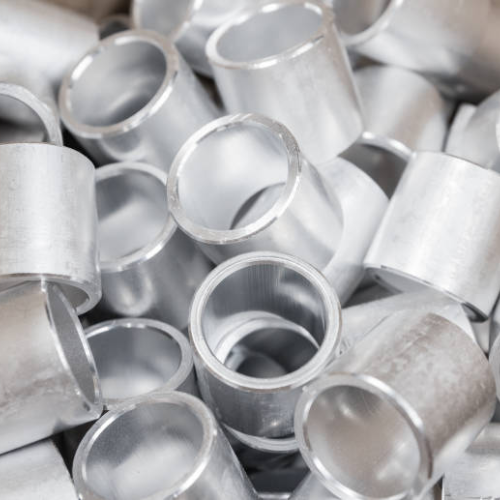

Carbon Steel Fittings
